Calibration Module
The pyccapt.calibration package provides workflows for atom probe tomography data preparation, calibration, reconstruction, and visualization.

Core Workflows
Typical calibration workflows include:
Import and crop datasets (HDF5, EPOS, POS, ATO, CSV, and raw-detector workflows).
Correct time-of-flight and estimate
t0/flight-path parameters.Convert time-of-flight to mass-to-charge (
m/c).Apply voltage and bowl corrections.
Perform 3D reconstruction.
Define and apply ranging windows, including saved
.h5,.rrng, and.rngrange files.Generate 2D/3D visualizations and analysis plots.
Package Structure
core: validation, shared state, and primary calibration logicdata_tools: loading, conversion, and preprocessing utilitiesmc: mass-to-charge and time-of-flight helper functionsreconstructions: reconstruction and structural analysis toolsclustering: clustering and isosurface workflowsleap_tools: LEAP/POS/EPOS/APT/RRNG/RNG readers, Cameca raw importers, and helper toolstutorials: notebooks and notebook helper modules
Mass-Calibration Pipeline
Mass calibration converts detector hits (time-of-flight, standing high
voltage, detector position) into a calibrated mass-to-charge (m/c)
spectrum. The pipeline in pyccapt.calibration.core.calibration runs the
following stages in order:
Initial calibration — a global
t0and flight-path estimate converts time-of-flight to a firstm/c.Voltage correction — corrects each event’s
m/cfor the slow change in standing voltage during evaporation, fit over ion-index or voltage segments.Bowl correction — corrects the residual position-dependent flight-time difference across the detector (the “bowl”), sampled in Cartesian or polar detector cells.
Time-drift correction (optional) — a multiplicative per-ion-index correction that cancels high-voltage or temperature drift remaining after steps 2-3 in long acquisitions.
Adaptive residual calibration — a per-peak temporal and spatial residual fit that tightens mass resolution after the parametric corrections.
Peak locations used to drive the fits are read at histogram bin centers, and histogram bins are anchored to the requested bin width.
Configuration presets
The data-processing notebook exposes a Config preset dropdown. All presets share the same voltage and bowl stages; they differ only in what runs afterward:
Adaptive residual (default) — voltage + bowl, then adaptive residual with the coarse-to-fine peak-scoring speedup.
+ time-drift correction (recommended) — adds the per-ion-index time-drift correction (stage 4) between bowl correction and the residual fit. Suited to long runs with measurable drift.
Legacy adaptive residual — voltage + bowl, then adaptive residual without the coarse-to-fine speedup. Slower, and reproduces the pre-2026 reference behaviour for bit-comparable results.
NIST reference fit
The ion-list helper provides a second Fit method that rescales the
already-calibrated m/c onto reference (NIST) masses. It only rescales
m/c; it does not re-fit the voltage, bowl, or drift corrections, so it
composes with the pipeline above rather than replacing it. The rescale is
applied to the current calibrated spectrum and is rejected automatically
if it introduces non-finite values or collapses the mass spread.
Partial-Hit Recovery (Surface Concept)
A delay-line detector reports an event only when all delay-line ends fire within the hardware coincidence window. Pulses that fired some, but not all, channels are normally discarded. The Surface Concept raw-data workflow can recover physically valid hits from these partial pulses:
For each delay-line axis (x: channels 0+1, y: channels 2+3), candidate pairs are enumerated and a one-to-one assignment selects a consistent subset. Axes are cross-matched by time-of-flight agreement: a matched pair becomes a full 2-axis (
xy) hit; unmatched pairs become single-axis (1-DLTS) partial hits.The diagnostics path (
extract_surface_concept_hits) enumerates every reconstructible pair and flags each one’sin_detectorstatus against the configured detector limit, so out-of-detector reconstructions are reported rather than silently dropped.The live merge path (
data_tools.partial_recovery.merge_partial_tdc_into_dld) appends the recovered rows to the/dlddataframe, tagging each with adlts(2 or 4) anddlts_qualitylabel. Single-axis recovered rows carryNaNon the unrecovered detector axis. Pulses are grouped byevent_group_id(wrap-safe), not by the rawstart_counter, which wraps during long runs.3-of-4 (time-sum) recovery (on by default in the merge path): pulses that fired one complete delay-line axis plus a single end of the other axis are promoted to full
(x, y)hits. The crossed delay lines share the same total propagation time (t0 + t1 = t2 + t3), so the missing end issum_complete_axis - t_present; the recovered hit is gated by non-negative recovered times, the detector radius, and the ToF window, and labelleddlts_quality = recovered_xy_3of4. The Surface Concept firmware “quadrupel finder” requires all four stops, so these hits exist only after this offline step. Setrecover_three_channel=Falseto disable it.Matched multi-hit residual recovery (opt-in,
recover_from_matched_multihit=True): the firmware keeps one hit per pulse, so a matched pulse that fired more stops than its DLD event(s) used may hold a second ion. The stops the firmware used are inverse-matched to its DLD event(s) by a coherent quadruplet – a(ch0, ch1)pair withinmultihit_match_tol_cmofdet_xand a(ch2, ch3)pair withinmultihit_match_tol_cmofdet_ywhose ToFs agree and whose combined ToF matches the firmware event’s recordedt (ns)– and removed; the residual stops are run through the recovery above. The ToF match matters because a detector coordinate depends only on the per-axis time difference, so a second ion at a similar position but a different flight time would otherwise be mis-removed; keying on the recorded flight time prevents that. It is opt-in because the inverse match is heuristic – a pulse with no coherent quadruplet matching the firmware event is skipped, avoiding both double-counting the firmware’s own hit and stitching a cross-ion artefact (a firmware hit that was itself a 3-channel reconstruction therefore skips safely).Order preservation: recovered atoms are inserted into the DLD frame at their acquisition position (right after the native rows of the most recent preceding pulse), never by sorting on
start_counter(a periodic counter whose value repeats throughout a run), so the reconstructed z/depth sequence is preserved.Only full
(x, y)hits are merged by default; single-axis 2-DLTS partials (one detector coordinate isNaN) are excluded because they cannot be placed in the 3-D reconstruction. Setinclude_one_d_partials=Trueto also append them (they appear in the mass spectrum via a centred-axis mc estimate).
Partial-hit recovery is available from the raw_data_analysis.ipynb
notebook and through the auto raw-analysis helper.
For a step-by-step walkthrough — the delay-line reconstruction formulas, worked examples of Surface Concept pulses of every length (0–8+ stops), the matched multi-hit residual recovery, and the TDC↔DLD match-quality cross-check printed at load time — see RAW_DATA_ANALYSIS.md.
Cross-Platform Paths
Use pyccapt.calibration.path_utils helpers for output and figure paths:
ensure_directorybuild_output_pathsave_figure
Data Structures
Calibration and range-file schema details are documented in Calibration_DATA_STRUCTURE.md.
Tutorials
Interactive examples are available in:
pyccapt/calibration/tutorials/jupyter_filespyccapt/calibration/tutorials/colab
The main Jupyter widget workflows currently include:
data_processing.ipynbvisualization.ipynbL_and_t0_determination.ipynbraw_data_analysis.ipynbcameca_raw_import.ipynbreflectron_correction.ipynbtapsim_node_builder.ipynb
A batch CLI companion to the reflectron notebook is also available:
python -m pyccapt.calibration.reflectron_correction.batch_cli scans a folder
for .epos files and writes <stem>_corrected.h5 (and optionally .epos)
beside each input for a chosen instrument preset. See the
Reflectron Batch Correction (CLI)
tutorial page for arguments and examples.
Speeding up calibration with multiple workers
A handful of calibration hot paths (bowl correction polar sampling, voltage
correction segment loop, Surface Concept raw-data diagnostics) automatically
parallelize across CPU cores when the workload is large enough to amortize
executor startup. The default is auto; set PYCCAPT_PARALLEL_WORKERS=1 to
force serial (useful for reproducible benchmarks and CI). See the
Parallel Execution in Calibration
tutorial page for the env vars, measured speedups, and which paths benefit.
Running on small-RAM machines
The calibration pipeline ships a memory-mapped I/O layer
(pyccapt.calibration.data_tools.lazy_io) so multi-gigabyte EPOS / POS /
pyccapt-raw HDF5 files can be loaded, reflectron-corrected, and analyzed on
machines with as little as 8 GB of RAM. The reflectron batch CLI uses it
automatically (peak heap drops from multiple GB to ~270 MB), and the
raw-data widget exposes a Low memory checkbox that routes the stats
through chunked code paths. See the
Working with Big Datasets on Small RAM
tutorial page for the full design, opt-in entry points, and measured
before/after numbers.
Google Colab support is currently provided for:
data_processing.ipynbvisualization.ipynb
The tutorial save steps can export processed datasets as HDF5, EPOS, POS, and ATO.
The visualization helpers also include Min-Max and Maximum-Separation clustering,
iso-surface generation, and proxigram analysis for selected precipitate populations.
Linking and saving raw /tdc data alongside /dld
PyCCAPT acquisition files contain both a /dld group with reconstructed events
and a /tdc group with the raw delay-line timestamps (DLTS) from which those
events were derived. From the calibration tutorials you can opt in to loading
both groups together via the Load raw tdc dropdown, and at save time choose
Save raw tdc to write the still-relevant raw rows into a /tdc key inside
the calibrated .h5 output.
Internally this is handled by a shared event_group_id column added to both
dataframes when the file is loaded with load_tdc_raw=True. The column rides
through every cropping step in the calibration workflow (TOF clip, ROI, FDM,
sequence range, manual mask drops); at save time the linked tdc rows for
deleted dld rows are dropped, while orphan tdc rows (pulses that never produced
a reconstructible dld event) are always preserved. See
Calibration_DATA_STRUCTURE.md for the on-disk
schema of the optional /tdc group and the linking semantics.
The user-facing tutorial pages are grouped in the Tutorials section of this documentation set.

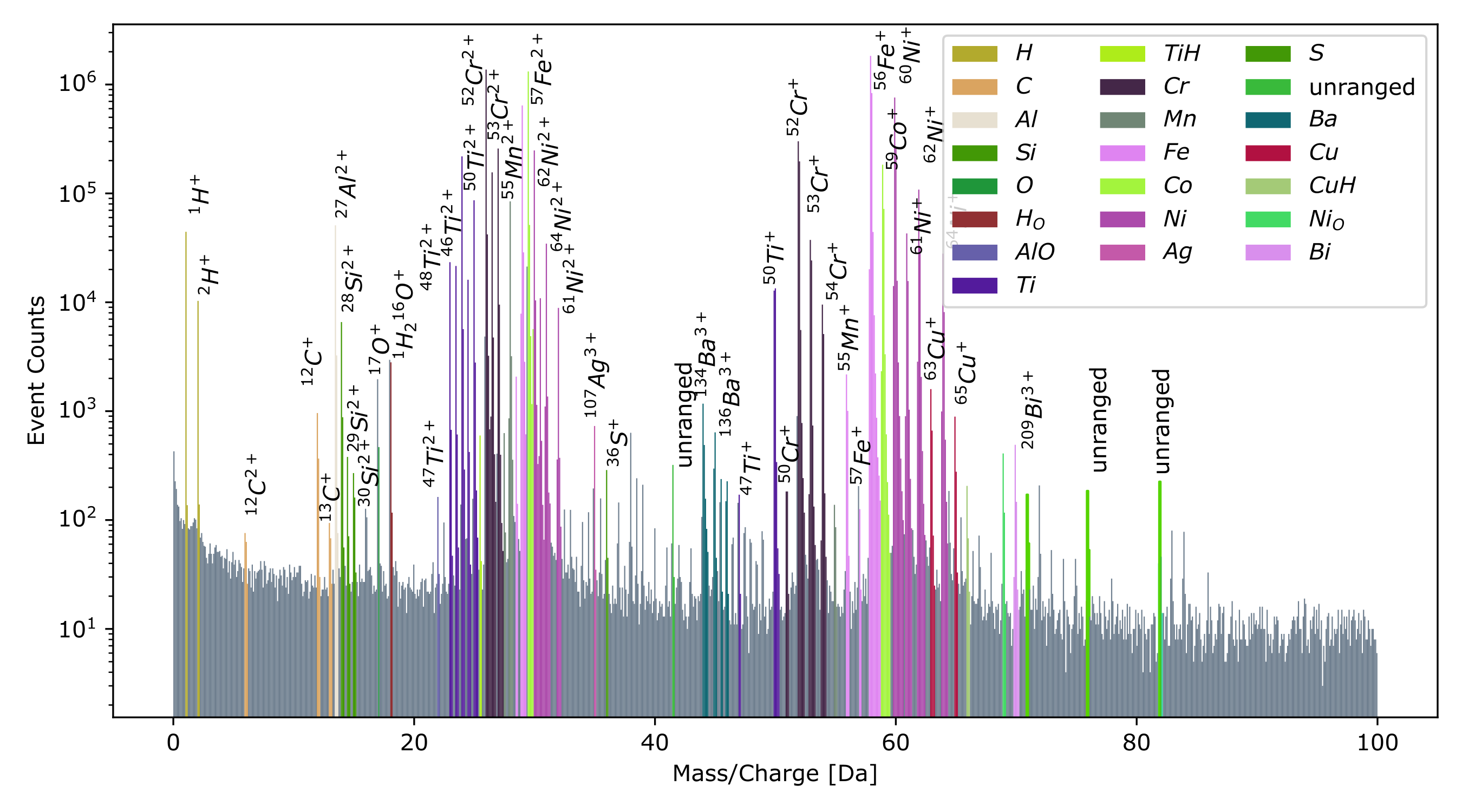

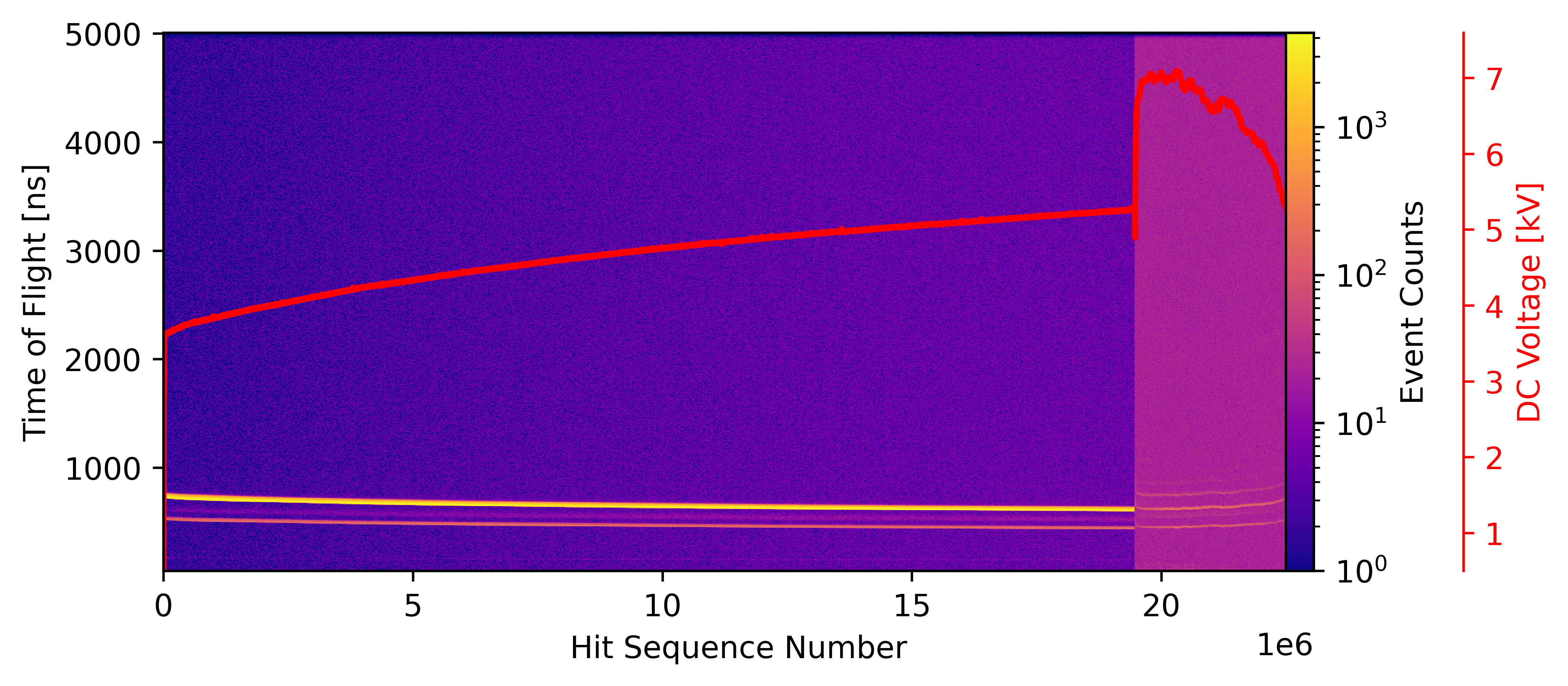

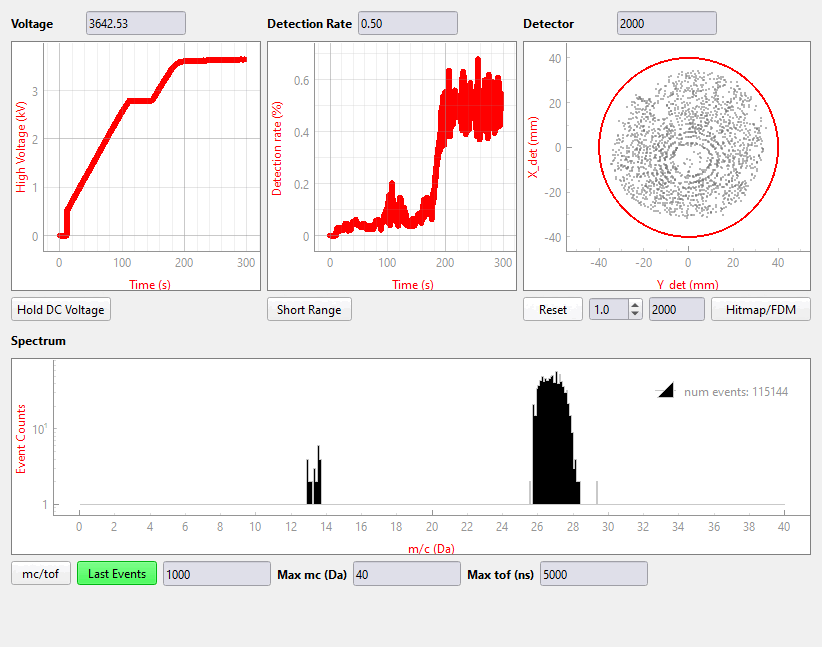

Workflow Snapshots


Interactive 3D example: Nimonic 90 reconstruction
