Control Module

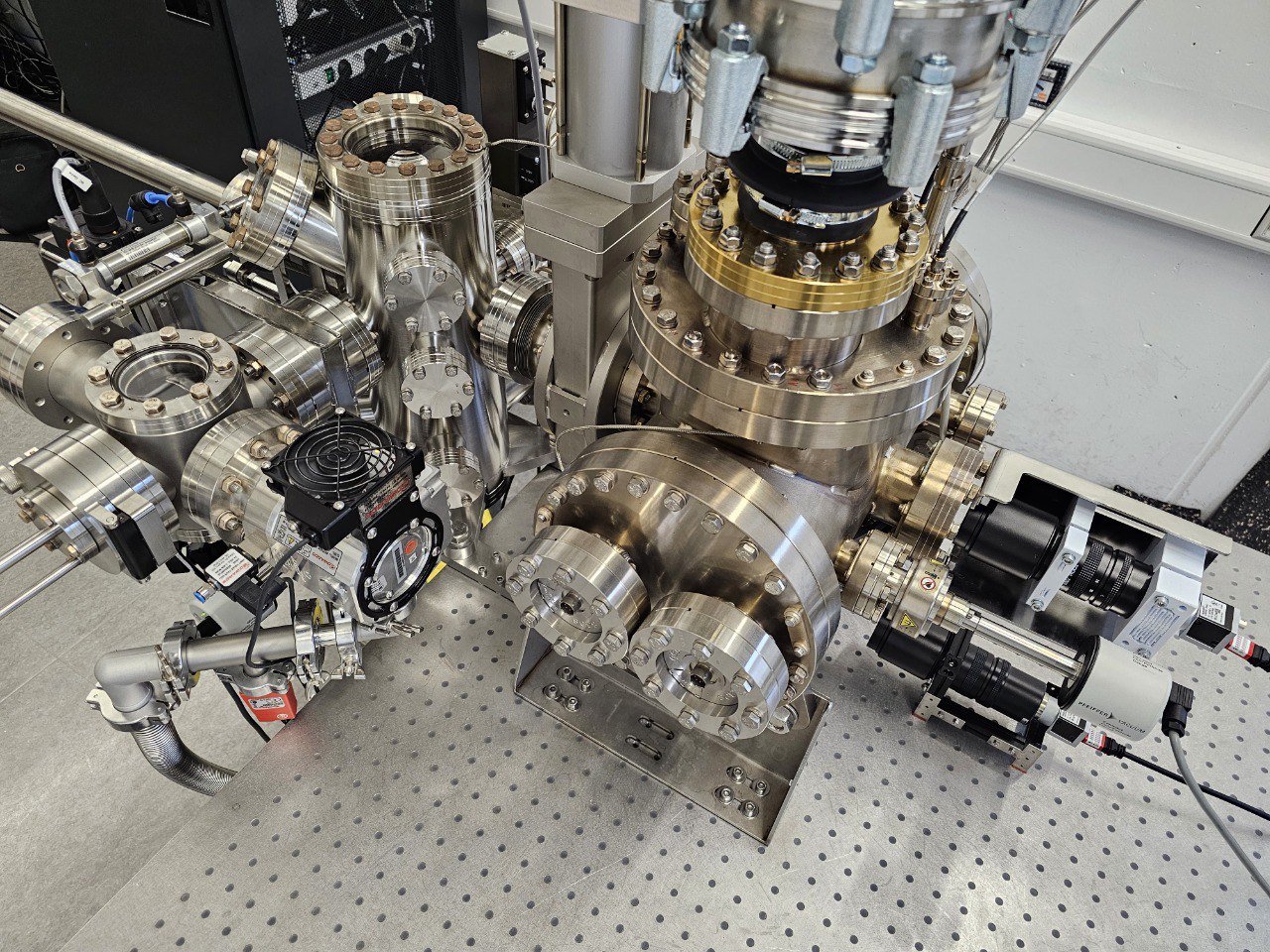

The pyccapt.control package provides instrument control, live monitoring, and experiment data acquisition workflows for open-source atom probe tomography systems.

Responsibilities

The control module is responsible for:

• experiment orchestration and control loops

• communication with detector and auxiliary hardware

• GUI-based runtime operation and monitoring

• synchronized shared state across cooperating processes

• writing experiment metadata and acquisition streams

Calibration and reconstruction are implemented in pyccapt.calibration.

Runtime Architecture

The application runs as multiple processes, typically including:

• main GUI process

• experiment/control process

• detector backend process (for example, Surface Concept, RoentDek, or DRS)

• optional sub-GUI processes

Shared state is handled via pyccapt/control/core/share_variables.py.

Configuration

Control runtime configuration is loaded from pyccapt/config.toml.

• supported format: TOML

• device toggles should use enabled / disabled

• legacy on / off values still work

Electrode labels used in the GUI are configured in pyccapt/control/electrode.toml.

Example:

[electrodes]
names = [
  "NiC1", # Nickel electrode
  "CuC1", # Copper electrode
  "NC",   # Not categorized
]

Electrode naming in the control workflow:

Use the electrode list to match the naming shown in the GUI and your lab workflow. For example, NiC1 refers to the nickel electrode and CuC1 refers to the copper electrode.

Startup Device Validation

• Enabled devices are validated when an experiment is started.

• If a required device cannot be opened, startup is blocked and the failure is reported in:

  • the main GUI warning area

  • terminal output

• Access Override now asks for confirmation before it bypasses those checks.

To proceed without a disconnected device in the normal path, set that device to disabled in config.toml.

Data Output

Control-side HDF5 schema details are documented in Control_DATA_STRUCTURE.md.

Runtime logs are stored in:

• pyccapt/files/logs/vacuum

• pyccapt/files/logs/baking/<timestamp>

Experiment logs

Two log files are written for every experiment:

File	Location	Content
GUI session log	<project_root>/files/logs/gui/gui_<YYYY-MM-DD>.log	All processes, all experiments for that day
Per-experiment log	<exp_folder>/meta_data/apt.log	Parameters, device state, stop reason

When an experiment ends abnormally, search both files for ERROR, CRITICAL, Traceback, or hdf_creator.

How experiment data is written

The detector backend writes data incrementally into chunk files during the run:

<exp_folder>/
├── temp_data/
│   └── chunks/
│       ├── x_chunk_1.npy
│       ├── x_chunk_2.npy
│       ├── y_chunk_1.npy
│       └── ...            (one file per stem per chunk flush)
└── meta_data/
    └── apt.log

At the end of the run, hdf_creator.hdf_creator() reassembles all chunks into the final HDF5:

<exp_folder>/
└── <exp_name>.h5          (final output; written atomically via a .tmp rename)

The apt/* group (id, timestamps, num_events, num_raw_signals, temperature, experiment_chamber_vacuum, and the stage_*/laser_* positions) is flushed to apt_* chunk files during the run and again at finalization, then reassembled into the final HDF5 alongside dld/* and tdc/*.

Recovering a Missing HDF5 File

If the control PC crashed, the experiment was killed, or hdf_creator raised an exception, the final .h5 may be absent while temp_data/chunks/ still contains all the raw data.

Step 1 — check the logs

Look for the failure reason in:

<exp_folder>/meta_data/apt.log
<project_root>/files/logs/gui/gui_<date>.log

Step 2 — run the recovery script

scripts/recover_chunks_to_hdf5.py reassembles chunk files into a valid HDF5 file.

Run it on the control computer (requires numpy and h5py):

python scripts/recover_chunks_to_hdf5.py "D:\pyccapt\pyccapt\data\2512_Jun-10-2026_16-01_NiC1_C3"

Or copy the script into the experiment folder and run without arguments:

cd "D:\pyccapt\pyccapt\data\2512_Jun-10-2026_16-01_NiC1_C3"
python recover_chunks_to_hdf5.py

The script:

1. Discovers all chunk files under temp_data/chunks/ and flat fallback files under temp_data/.

2. Loads each stem, skipping zero-byte or corrupted chunks with a warning.

3. Reconciles unequal array lengths within each group (dld/*, tdc/*) by truncating all arrays to the shortest present member and printing a report of any rows dropped.

4. Loads the full apt/* metadata group (id, timestamps, num_events, num_raw_signals, temperature, experiment_chamber_vacuum, stage_x/y/z, laser_x/y/z) from its apt_* chunk files.

5. Legacy fallback only (experiments with no apt_* chunks): reconstructs apt/id, num_events, and num_raw_signals from the start_counter arrays and zero/linear-fills temperature, experiment_chamber_vacuum, and timestamps (these fallback-only fields are not used by the calibration pipeline).

6. Prints the last 50 lines of apt.log so the failure reason is visible without opening a separate terminal.

7. Writes the output via an atomic .tmp → rename so the experiment folder is never left in a half-written state.

What is and is not recovered

Group / dataset	Recovered from chunks?	Notes
dld/x, y, t	Yes	Primary calibration data
dld/high_voltage, voltage_pulse, laser_pulse	Yes
dld/start_counter	Yes	Aligns hits to control-loop steps
tdc/*	Yes	All six TDC datasets
apt/id, num_events, num_raw_signals	Yes	From apt_* chunks (or reconstructed from start_counter for legacy files)
apt/temperature, experiment_chamber_vacuum, timestamps	Yes	From apt_* chunks; zero/linear-filled only for legacy files without them
apt/stage_x/y/z, laser_x/y/z	Yes	Stage & laser-focus positions per loop step, from apt_* chunks

For legacy experiments that predate apt_* chunk flushing, the recovery falls back to zero/linear-filling apt/temperature, apt/experiment_chamber_vacuum, and apt/timestamps; those fallback-only fields are not read by the calibration or reconstruction pipeline, so the recovered file is fully usable for all downstream analysis.

Edge cases handled by the script

Situation	Behaviour
Stem entirely absent	Dataset omitted from output; warning printed
Zero-byte or unreadable chunk	Chunk skipped; remaining chunks in that stem still loaded
Dtype mismatch between chunks	Each chunk cast to the expected dtype with a warning
Unequal lengths within dld/* or tdc/*	All arrays truncated to shortest; rows dropped are reported
Existing .h5 in the folder	Interactive prompt before overwrite
temp_data/ missing entirely	Error with hint to check the logs

GUI Overview

The main window is the experiment entry point. Long error messages now use a smaller wrapped font so port and device warnings remain readable inside the GUI instead of being clipped.

Sub-GUI views:

• Gates:

• Pumps/Vacuum:

• Cameras:

• Laser:

• Stage:

• Visualization:

• Baking:
