Control Configuration

PyCCAPT control runtime is configured with a TOML file:

  • default path: pyccapt/config.toml

  • supported format: .toml only

Runtime loading follows this order:

  1. Explicit config path (if provided by the caller)

  2. config.toml in the detected project root

Electrode List Configuration

The control GUI electrode dropdown is loaded from:

  • pyccapt/control/electrode.toml

Example:

[electrodes]
names = [
    "NiC1", # Nickel electrode
    "CuC1", # Copper electrode
    "NC",   # Not categorized
]

Electrode naming reference:

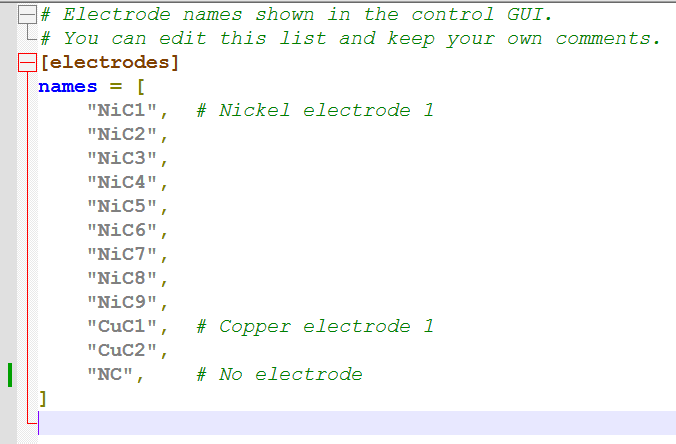

Electrode naming reference used in the control GUI

Use names that match your experimental workflow and the labels presented in the control GUI. In the default example, NiC1 refers to the nickel electrode and CuC1 refers to the copper electrode.

TOML supports comments, so lab-specific notes can be kept directly in this file.

Configuration Groups

The control configuration file is organized into a few logical groups.

Visualization and Calibration Constants

These settings define plotting mode and conversion constants used during control and visualization (for example, flight-path length and timing offsets).

Examples:

  • visualization = "mc"

  • flight_path_length

  • t_0_voltage

  • t_0_laser

  • max_mass

  • max_tof

Safety Limits and Control Bounds

These values define operating ranges and guardrails for voltages, pulse behavior, laser power, and cryogenic temperatures.

Examples:

  • max_vdc

  • min_vp / max_vp

  • pulse_fraction_max

  • max_laser_power

  • max_temperature_cryo / min_temperature_cryo

Device Enable Flags

Hardware blocks can be enabled or disabled using "enabled" / "disabled". Legacy "on" / "off" values still work.

Examples:

  • tdc, camera, gates, laser, stage

  • pump_ll, pump_cll, gauges, cryo

  • v_dc, v_p, signal_generator, DAQ

Connection Identifiers

Connection endpoints are specified using COM_PORT_* keys. Depending on the device, values can be serial COM ports, NI-DAQ paths, VISA resource strings, or hardware IDs.

Examples:

  • COM_PORT_laser = "COM9"

  • COM_PORT_gates = "Dev2/port0/"

  • COM_PORT_signal_generator = "USB0::...::INSTR"

Best Practices

  • Start from pyccapt/config.toml and keep it under version control.

  • Add comments directly in the TOML file to document local lab settings.

  • Validate hardware port values before experiment runs.

  • Keep conservative bounds for safety-critical settings.
